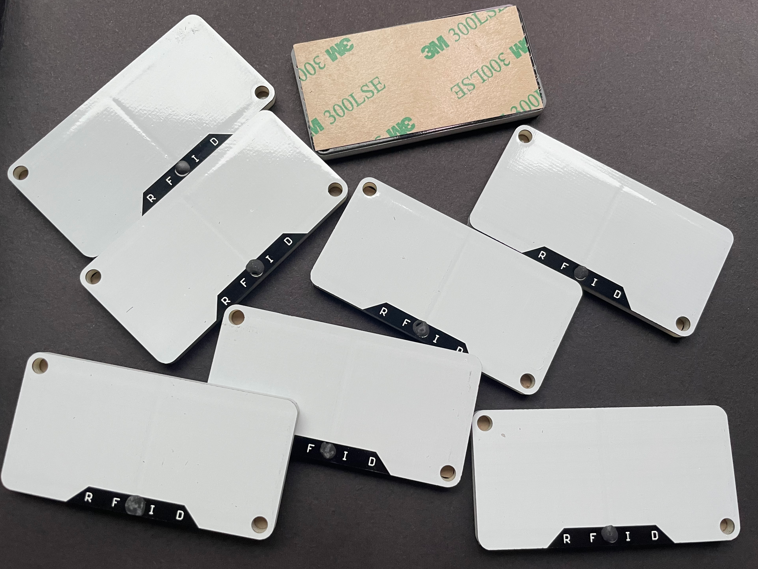

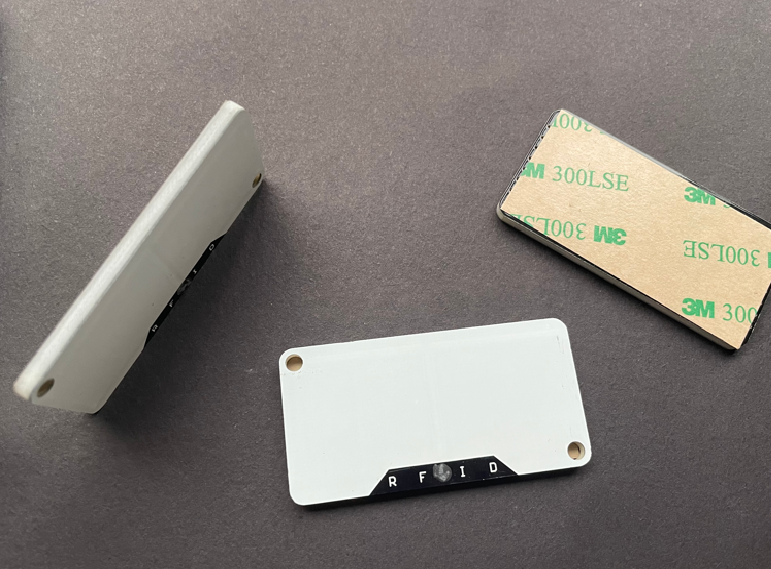

On Metal Asset Tag INF-6030
Product Features
SID innovative design INF-6030 tag features anti-metal and Rugged,with excellent working performance attached on metal or embedded in metal. It equips FR-4 base material,IP68 rate, can handle indoor or outdoor conditions. Widely applied on Asset management,Heavy Industrial Equipment tracking, Industrial management...
- Highly sensitivity
- IP68 Rate
- UHF Frequency
- Can printing logo/Serial NO.
- 30mins for 180°C
Specifications | |
Model No. | INF-6030 |
Dimensions | 60(L) x 30(W) x 3 (H) mm |
Material | FR-4 PCB |
Antenna material | Gold+Copper |
Chip connected method | Positive binding |
Frequency | 902-928MHZ / 866-868MHZ |
Chip | Alien H9 or Impinj M750 |
Typical Read Range (on metal) | 3-8 meters |
Operating Temperature | -20°C to 180°C (30mins for 180°C) |
Stocking Temperature | -40℃ to 200℃ |
Color | White ( can customized) |
Printing service | Can silk-screen, laser printing, UV Printing |
Adhesive | Option |
Certification | IP68 |
Read/write cycles | 100,000 times |
